Durian Dryer

Durian dryer:
        Gongyi Lantian Machanical Plant focus on the high efficiency, energy saving and environment protection durian dryer. It has a strong professional team to provide customers with the best design, small investment and good efficiency of drying equipment. The professional engineers can be for door installation, commission and careful coaching customers to use the dryer equipment. Drying is a technology, and it needs professional technician to do the drying work. The drying machine is the organic combination of machine and material. And familar with materials, we design the most suitable drying chamber, including the system for air supplying, air volume, air pressure, temperature, humidity, etc.
        The durian drying machine a kind of dryer with drying and dehumidifying, which is a powerful functions dryer. It can dry, dehumidify and cool the materials, and it can be programmed for period drying, which can meet the requirements for different industries.
        The durian dryer is making use of the reverse carnot principle, input small quantity of electrical energy to absorb the heat in the air and transfer the heat into the chamber to imporve temperature of chamber, with corresponding dehumidifying system to realize the drying durian.

The system composition:
        1. Main device (heating system): use less electrical energy to absorb the heat from the air for drying durian or durian pieces.
        2. Drying chamber: it is used for loading materials and for keeping temperature and avoiding heat losses.
        3. Wind/air circulation system: to take the heat to full of the drying chamber and improve the temperature, and to take away the water evaporated from durian.
        4. Dehumidifying system: drain out the water in the chamber to achieve the purpose of drying.
        5. Waste heat recovery system: the durian drying equipment has three waste heat recovery systems, which greatly lower the loss of heat.
        6. Drainage system: discharge the condensate water to outside to avoid the increasing humidity of the chamber.

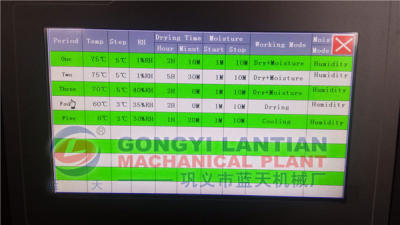

        7. Programmable intelligent control system: automatically adjust temperature, humidity, drying temperature, and intelligent operation according to the most appropriate drying process curve.
        8. Warning system: to set warning parameters based on time, temperature, humidity, etc. according to users requirements.

The advantages:
        1. Stable, not affected by the weather, can work through the day and night.
        2. High energy efficiency. Our durian dryer use clean electricity, and its running consumption is 40% of oil dryer, 60% of coal dryer and 30% of other heating dryer. It adopts full closed dehumidifying system, and waste heat circulation system and no need to discharge the waste heat to outside.
        3. Good drying efficiency. The dried durian will be in good appearance, high nutrient content, drying uniform and fully drying.
        4. Small covering area, easy installation. The durian drying machine just need a small area for installation, and the drying chamber can be assembled easily.
        5. Intelligent and no workers for supervising. The touching screen programmable intelligent control system. A key to start the dryer to run automatically.
        6. Safe. Our durian drying equipment adopts electricity and air separated technology, so no electric leak risk, no inflammable fire or explosion risk.
        7. Environmental protection. Our durian drying machine is using the clean elctric energy, and no any pollution for the durian, and no pollution to the environment, no any wastes discharging.
        8. Excellent accessories to make the dryer duriable using.
        9. Simple operation and convenient maintenance.
        10. Multifunctional and wide application. Our durian drying equipment can dry, dehumidify, and cool. It can be used in food drying, agricultural drying, wood drying, industrial products drying, etc.
